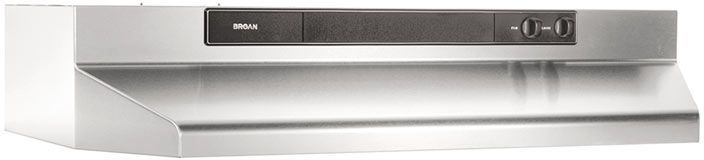

Broan® 46000 Series 36" Stainless Steel Under Cabinet Range Hood

View more by Broan
Model #: 463604
Model #: 463604
31389
Broan
$264.61
Broan® 46000 Series 36" Stainless Steel Under Cabinet Range Hood-0
Broan® 46000 Series 36" Stainless Steel Under Cabinet Range Hood-1
Broan® 46000 Series 36" Stainless Steel Under Cabinet Range Hood-2
View Delivery & Pickup OptionsAdd Zip Code

Protection Plans

3 Yr Appliance Warranty

$99.96

5 Yr Appliance Warranty

$199.96

Haul Away

Haul Away Service

$29.96

Request more info
At a Glance

Variable speed performance. Deluxe performance in an economical package. The infinitely adjustable speed control allows you to set the hood speed for the perfect combination of ventilation and quiet. Read More

Get to know this product.

Product Overview
Product Overview

190 CFM, 7.5 Sone (3-14" x 10") or 220 CFM (7" round)– HVI Certified

Easily installs as 7" round vertical discharge; 3-1/4" x 10" vertical discharge; 3-1/4" x 10" horizontal discharge or non-ducted (model 41F non-ducted filter sold separately)

Dishwasher-safe aluminum grease filter (model BP29)

Rotary, infinitely adjustable fan-speed control

75-watt cooktop lighting with protective polymeric lens and two-level light control. Bulb not included

Includes 3-1/4" x 10" damper/adapter and 7" round adapter

This range hood can work in an ADA-compliant application

Useful Documents
Range Hood Cord Kit Installation Guide
Specification Sheet
Compliant Statement
Range Hood Catalog
Installation Guide
Specifications

General Specs

Width (in.)36
Height (in.)6
Depth (in.)17.5
Collection46000 Series
Appliance ColorStainless Steel
PositioningStationary
Manufacturer Warranty1 Year
Color Finish NameStainless Steel
Range Hood TypeUnder Cabinet
ENERGY STAR CertifiedNo
Appliance Fit Width (in.)36
Maximum CFM220
Voltage120
Amp2.5

Overview

Sones7.5
Light Number Of Levels2
Light Bulb Wattage75W
Light Bulb Recommended TypeA19
Light Bulb Quantity1
Filter Quantity1
Filter TypeAluminum
Motor Number Of SpeedsVariable
Damper IncludedYes
Wattage300
Switch Control TypeRotary Dial
Non-Ducted Recirculation CapableConvertible built-in
Duct Connector Size3-1/4" x 10" or 7" Round
Duct DirectionHorizontal/Vertical
Duct ShapeRectangular or Round
Duct Diameter7"
Duct Height Rectangular3-1/4"
Duct Width Rectangular10"
