Broan® 40000 Series 36" White Under Cabinet Range Hood-0
Broan® 40000 Series 36" White Under Cabinet Range Hood-1
Broan® 40000 Series 36" White Under Cabinet Range Hood-2

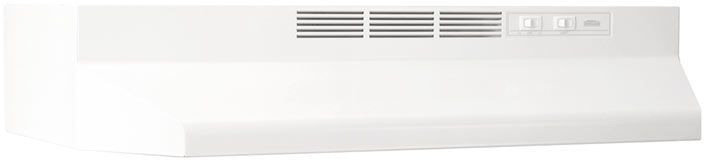

Broan® 40000 Series 36" White Under Cabinet Range Hood


Model #:

403601

At a Glance

Product Dimensions 6"h x 36"w x 17.50"d

The Broan 40000 series is made for a wide range installations and comes in a variety of appliance matching colors and widths. The durable under cabinet hood installs as 3-1/4 in. x 10 in. ducted opening only and ducts either vertically or horizontally. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation. Includes duct adapter with built-in damper.Read More

$135.47

View Delivery & Pickup OptionsAdd ZIP Code

What We Offer

INSTALLATION AVAILABLELOWEST PRICE GUARANTEED

Related items:

Get to know this product.

Product Overview

Product Overview

Installs as 3-1/4" x 10" vented only

160 CFM, 6.5 Sone (vertical or horizontal discharge) performance – HVI 2100 Certified

Dishwasher-safe aluminum grease filter (model BP29)

A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)

Duct connector with built-in damper included

This range hood can work in an ADA-compliant application

Useful Documents
Specifications

General Specs

ColorWhite
Color-Finish NameWhite
Range Hood TypeUnder Cabinet
Duct Size (in.)3.25" x 10"
Maximum CFM160
Appliance Fit Width (in.)36
Width (in.)36
Height (in.)6
Depth (in.)17.50
ENERGY STAR CertifiedNo
Collection40000 Series
Manufacturer Warranty1 Year
Voltage120
Amp2
PositioningStationary

Overview

Sones6.5
Light Number Of Levels1
Light Bulb Wattage75W
Light Bulb Recommended TypeA19
Light Bulb Quantity1
Filter Quantity1
Filter TypeAluminum
Motor Number Of Speeds2
Damper IncludedYes
Wattage240
Switch Control TypeRocker
Duct Connector Size3-1/4" x 10"
Duct DirectionHorizontal/Vertical
Duct ShapeRectangular
Duct Diameter3-1/4" x 10"
Duct Height Rectangular3-1/4"
Duct Width Rectangular10"
