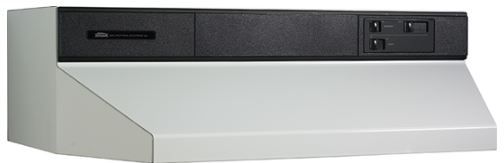

Broan® 36" White Under The Cabinet Hood
At a Glance
Product Dimensions 9"h x 36"w x 20"d
The 88000 series from Broan offers an elegant yet powerful and quiet approach to ventilation. The under cabinet range hood features an infinite speed slide control with blower memory feature that saves last setting. Installs as 3-1/4 in. x 10 in. ducted opening and ducts either vertically or horizontally or in a non-duct re-circulation mode. The hood includes a super quiet dual centrifugal blower, dual incandescent lighting, convenient slide controls, dual dishwasher safe grease filters.Read More
Related items:
Get to know this product.
Product Overview
The 88000 series from Broan offers an elegant yet powerful and quiet approach to ventilation. The under cabinet range hood features an infinite speed slide control with blower memory feature that saves last setting. Installs as 3-1/4 in. x 10 in. ducted opening and ducts either vertically or horizontally or in a non-duct re-circulation mode. The hood includes a super quiet dual centrifugal blower, dual incandescent lighting, convenient slide controls, dual dishwasher safe grease filters. Additional Features
- Convenient slide controls – infinitely adjustable blower speed
- Infinite speed slide control with blower memory feature that saves last settings
- Standard Heat Sentry™ detects excessive heat and turns blower to high
- Powerful, quiet 360 CFM, 5.5 Sone (vertical discharge) or 350 CFM, 6.0 Sone (horizontal discharge) performance – HVI Certified
- Convertible to ducted or non-ducted operation. Includes 3-1/4 x 10" damper/adapter Non-Ducted Filter sold separately
- Accepts two 75 watt bulbs. Bulbs not included
Useful Documents
Specifications
General Specs |
| Width (in.) | 36 |
| Height (in.) | 9 |
| Duct Size (in.) | 3.25" x 10" |
| Depth (in.) | 20 |
| Color | White |
| Positioning | Stationary |
| Color Finish Name | White |
| Appliance Fit Width (in.) | 36 |
| Maximum CFM | 360 |
| Voltage | 120 |
| Amp | 4.5 |
Construction |
| Chimney: | Fixed |
Dimensions |
| Min Height Above Cooktop: | 18 |
Display |
| Controls: | Mechanical |
General Features |
| Filter Type: | Dishwasher Safe Aluminum |
Other |
| Number of Lights: | 2 |
| Settings: | Variable Speed |
| Air Mover Type(s): | Dual Centrifugal Blower |
| Sones (Noise Level) Rating: | 6.0 |
